Solar Lithium Battery

This solar energy storage system can provide power to connected loads by utilizing PV power, utility power and battery power and store surplus energy generated from PV solar modules for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the solar energy stored in this system to meet your energy needs at no extra cost. In addition, this solar energy storage system helps you pursue the goal of energy self-consumption and ultimately energy-independence.

Features:
1) Excellent cycle life and friendly price;
2) Support all kinds of BMS communication protocol;
3) 12V series, 24V series, and 48V series batteries;
4) Accept customized services and OEM;
5) Easy installation and maintenance;
6) High quality after-sales service.

Voltage covers: 12V Series Capacity: From100Ah to 300Ah
Designed service life: 5 years for capacity 100Ah to 300Ah @ 25 °C/77 °F

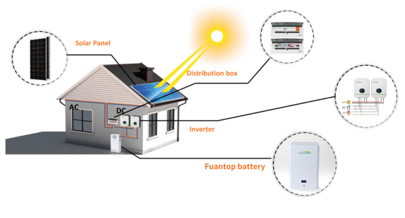

Home Energy Storage System

Home Enerrgy Storage System

Solar energy systems include collectors to convert solar radiation to heat in a fluid, energy storage units which are designed to accumulate energy when it is available and deliver it when needed, means to deliver the energy from the storage to a load, and necessary pumps, controls, etc.

Solar Lithium Battery Catalog

12V series

12V solar Lithium Battery

Model	Nominal Voltage (V)	Norminal Capacity (Ah)	Norminal Energy (Wh)	Max Charge Current (A)	Max Disharge Current (A)	External Dimension
						Length	Width	Total Height
						mm	mm	mm
ES12045LFP(12V4.5Ah)	12.8	4.5	58	4.5	10	90	70	107
ES12060LFP(12V6Ah)	12.8	6	77	6	10	90	70	107
ES12075LFP(12V7.5Ah)	12.8	7.5	96	7.5	20	151	65	100
ES1210LFP(12V10Ah)	12.8	10	128	10	20	151	65	100
ES1215LFP(12V15Ah)	12.8	15	192	15	20	151	98	101
ES1220LFP(12V20Ah)	12.8	20	256	15	30	181	77	167
ES1230LFP(12V30Ah)	12.8	30	384	20	30	166	175	125
ES1240LFP(12V40Ah)	12.8	40	512	20	30	198	167	170
ES1250LFP(12V50Ah)	12.8	50	640	50	50	229	138	213
ES1260LFP(12V60Ah)	12.8	60	768	50	60	229	138	213
ES1280LFP(12V80Ah)	12.8	80	1024	80	80	258	166	215
ES12100LFP(12V100Ah)	12.8	100	1280	100	100	330	172	220
ES12100LFP(12V100Ah)	12.8	100	1280	100	100	395	110	293
ES12100LFP(12V100Ah)	12.8	100	1280	100	100	306	168	216
ES12200LFP(12V200Ah)	12.8	200	2560	200	200	485	170	242
ES12300LFP(12V300Ah)	12.8	300	2840	300	300	520	269	224

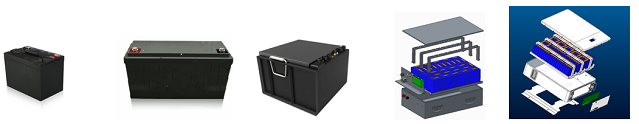

24V series

24V series Solar Lithium Battery

Model	Nominal Voltage (V)	Norminal Capacity (Ah)	Norminal Energy (Wh)	Max Charge Current (A)	Max Disharge Current (A)	External Dimension
						Length	Width	Total Height
						mm	mm	mm
ES2410LFP(24V10Ah)	25.6	10	256	10	30	181	77	167
ES2420LFP(24V20Ah)	25.6	20	512	20	30	198	167	170
ES2430LFP(24V30Ah)	25.6	30	768	30	30	229	138	213
ES2440LFP(24V40Ah)	25.6	40	1024	30	30	258	166	215
ES2450LFP(24V50Ah)	25.6	50	1280	50	50	395	110	293
ES2460LFP(24V60Ah)	25.6	60	1536	50	50	436	108	317
ES24100LFP(24V100Ah)	25.6	100	2560	100	100	485	170	242
ES24150LFP(24V150Ah)	25.6	150	3840	100	100	520	269	224

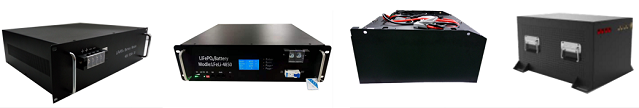

48V seriess:

48V series Solar Lithium Battery

Model	Nominal Voltage (V)	Norminal Capacity (Ah)	Norminal Energy (Wh)	Max Charge Current (A)	Max Disharge Current (A)	External Dimension
						Length	Width	Total Height
						mm	mm	mm
ES4820LFP(51.2V20Ah)	51.2	20	1024	20	20	250	150	170
ES4850LFP(51.2V50Ah)	51.2	50	2560	50	50	482	360	132
ES48100LFP(51.2V100Ah)	51.2	100	5120	100	100	482	442	177
ES48150LFP(51.2V150Ah)	51.2	150	7680	100	100	482	442	177
ES48200LFP(51.2V200Ah)	51.2	200	10240	100	100	552	442	222
ES48300LFP(51.2V300Ah)	51.2	300	15360	100	100	721	403	431.5

Solar Lithium Battery Structure

Solar Battery structure
