Solar ESS Series
Solar Energy Storage System(ESS) Series are designed with LiFePO4 battery pack for energy storage, UPS, and backup power. Solar ESS provides a smart, efficient, reliable, scalable energy system that will save customer daily energy cost. With the buit-in super smart battery management system(BMS), Solar ESS has strong protection from any potential damage, and can even monitoring or adjusting the battery remotely.

Features:
1) Excellent cycle life and friendly price;
2) Support all kinds of BMS communication protocol;
3) 12V series, 24V series, and 48V series batteries;
4) Accept customized services and OEM;
5) Easy installation and maintenance;
6) High quality after-sales service.

Voltage covers: 12V 24V and 48V Series   Capacity: From50Ah to 300Ah
Designed service life: 5 years for capacity 50Ah to 300Ah @ 25 ¡ãC/77 ¡ãF



Solar ESS Battery Catalog

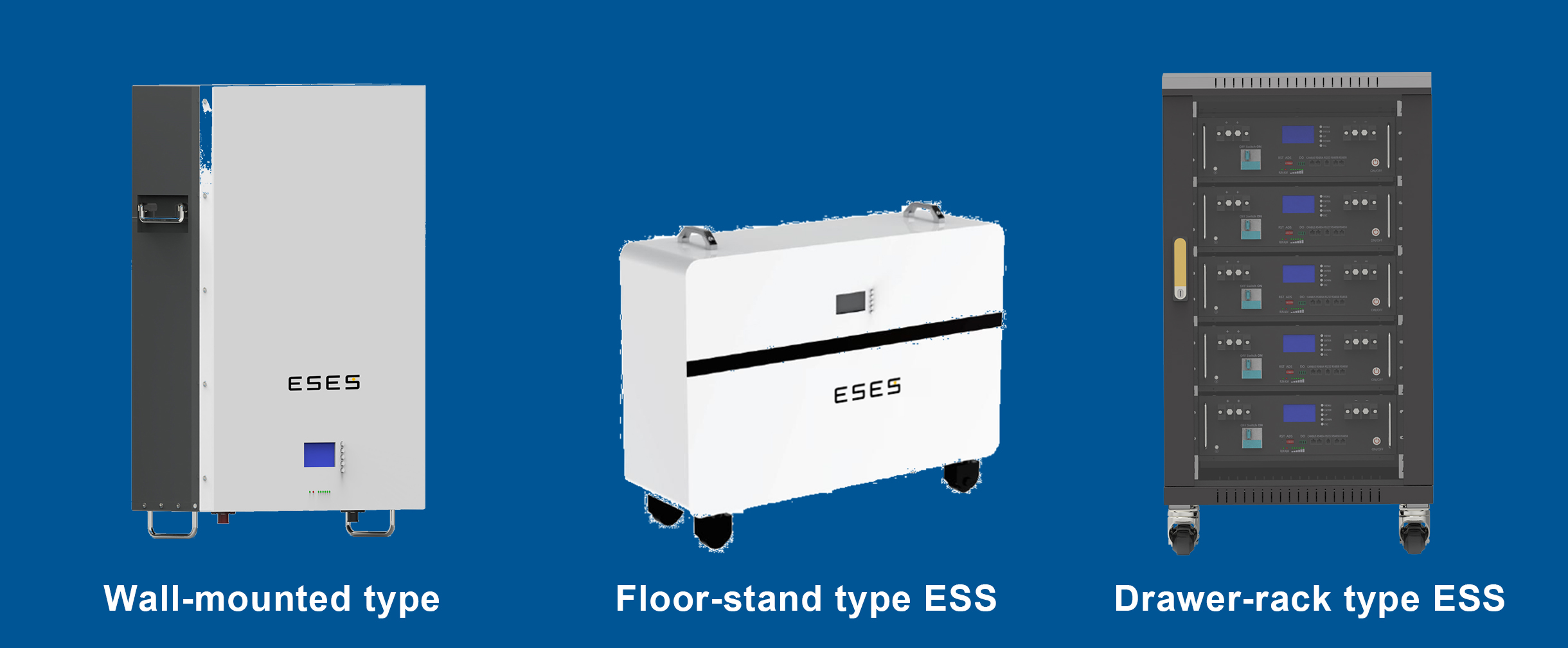

Drawer-Rack ESSs:
Model Nominal
Voltage
(V)		 Norminal
Capacity
(Ah)		 Norminal
Energy
(Wh)		 Max Charge
Current
(A)		 Max Disharge
Current
(A)		 External Dimension
Length Width Total Height
mm mm mm
ES4820LFP(51.2V20Ah) 51.2 20 1024 20 20 250 150 170
ES4850LFP(51.2V50Ah) 51.2 50 2560 50 50 482 360 132
ES48100LFP(51.2V100Ah) 51.2 100 5120 100 100 482 442 177
ES48150LFP(51.2V150Ah) 51.2 150 7680 100 100 482 442 177
ES48200LFP(51.2V200Ah) 51.2 200 10240 100 100 552 442 222
ES48300LFP(51.2V300Ah) 51.2 300 15360 100 100 721 403 431.5



Wall-mounted ESS seriess:
Model Nominal
Voltage
(V)		 Norminal
Capacity
(Ah)		 Norminal
Energy
(Wh)		 Max Charge
Current
(A)		 Max Disharge
Current
(A)		 External Dimension
Length Width Total Height
mm mm mm
ES48100LFP(51.2V100Ah) 51.2 100 5120 100 100 680 495 188
ES48150LFP(51.2V150Ah) 51.2 150 7680 100 100 680 495 188
ES48200LFP(51.2V200Ah) 51.2 200 10240 100 100 700 425 240



Floor-stand seriess:
Model Nominal
Voltage
(V)		 Norminal
Capacity
(Ah)		 Norminal
Energy
(Wh)		 Max Charge
Current
(A)		 Max Disharge
Current
(A)		 External Dimension
Length Width Total Height
mm mm mm
ES48100LFP(51.2V100Ah) 51.2 100 5120 100 100 680 495 188
ES48150LFP(51.2V150Ah) 51.2 150 7680 100 100 680 495 188
ES48200LFP(51.2V200Ah) 51.2 200 10240 100 100 700 425 240



Features

  • Maintenance-Free Operation
  • High quality & High consistency
  • High reliability and High safety
  • Long service life and Low self Discharge
  • Steel containers and covers(UL94HB),and Flame-retardant ABS(UL94V-0) optional
  • Wide operating temperature range
